Coalescer Filter Cartridge For Air Compressor

Coalescer Filter Cartridge For Air Compressor

    Packaging: Carton Boc
    Transportation: Land,Ocean,Air,Express
    Supply Ability: 500PCS Per Days
    Port: Shenzhen,Guangzhou,Shanghai

Basic Info

Model No.: HFD020

Product Description



Why is compressed air filtration required?

In one cubic foot of atmospheric air, there are millions of particles that are potentially harmful to your machines and equipment.

The concentrated contaminates will easily find their way into your process lines, causing frequent and expensive downtime of your pneumatic equipment or adversely affecting the quality of your products. The incorporation of filtration into your compressed air system will produce benefits in both productivity and product quality.

Feature & Benefit

Operating pressure: 1.6Mpa

Flow rate: 1.0 to 7.2m³/min (till now)

Filtration Rate: 5μm/1μm/0.1μm/0.01μm

Material: Aluminum alloy

Unique lock design,to ensure easy for maintenance and air tightness.

Parallel and wall connection kit available.


High Efficiency Removal of Pollutant
Our Medium & high pressure filter features efficiency fiber glass and felt media to maximize the filtration of dry and wet dust, particulates, oil suspended solids and water droplets. Minimize pressured drop and maintain economical operation costs.

Superior Air Tightness
Unique lock design,easy to replace and maintenance

Avoid Second Pollution
Inside and outside with anti-corrosion, with Stainless Steel manual ball valve.

Low Differential Pressure
The optimized flow design and the use of filter materials serve to keep differential pressure at a constant low level during the entire service life of the element without compromising it's dirt holding capacity.

High-tech design
It is clearly visible due to the edges at the filter head of the compressed air inlet to ensure reliable connection between the left and right Filter Housings and the left and right Filter Housing parts during the assembly process.
Compressed air provides a smooth, non-turbulent air velocity when entering the filter element.



HFD series with 7 Grades Filter Element: PF/AO/AA/AX/ACS/AR/AAR
PF AO AA AX ACS AR AAR
As a primary filter, particles whose diameter more than 5μm can be remove,the maxi. residual oil content is negligible High efficiency general protection, dust particles, water mist & oil mist whose diameter more than 1μm can be removed, the residual content of oil mist does not exceed 0.6mg/m³ (21℃),1ppm(w). High effiency oil remove filtration, dust particles, water mist and oil mist whose diameter more than 0.01μm can be removed, the residual content of oil mist does not exceed 0.01mg/m³(21),0.01ppm(w) Ultra-efficient filtration, dust particles, water mist&oil mist whose diameter more than 0.01μm can be removed, the residual content of oil mist does not exceed 0.001mg/m³(21),0.001ppm(w) Dust particles whose diameter more than 0.01μm, oil vapor &odor can be removed, the maxi. resident content of oil vapor does not exceed 0.003mg/m³(21)0.003ppmw Dust particles whose diameter more than 1μm can be removed Dust particles whose diameter more than 0.01μm can be removed

Product Specification

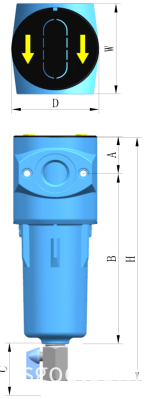

Model) Pipe size Flow rates Dimension (mm)
L/S m³/min scfm W (Width) D (Depth) H (Height) A B
HFD010 RC1/2" 16.7 1.0 35.3 90 82 255 37 179
HFD020 RC3/4" 25.0 1.5 53.0 90 82 255 37 179
HFD030 RC3/4" 30.0 1.8 63.6 90 82 286 37 212
HFD040 RC1" 33.3 2.0 70.6 90 82 286 37 212
HFD050 RC3/4" 46.7 2.8 98.9 120 113 359 53 269
HFD060 RC1" 60.0 3.6 127.1 120 113 359 53 269
HFD070 RC1" 80.0 4.8 169.5 120 113 459 53 369
HFD080 RC1-1/2" 120.0 7.2 254.2 120 113 459 53 369
Technical requirements Maximum operating pressure: 16 barg Maximum operating temperature: 80°C Minimum operating temperature:1.5°C

Pressure Barg 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Psig 15 29 44 59 73 87 100 116 131 145 160 174 189 203 219 232
Correction factor 0.38 0.53 0.65 0.76 0.85 0.93 1.00 1.07 1.13 1.19 1.23 1.31 1.36 1.41 1.46 1.51

coalescer fitler cartridge



YUKA service:


a. Providing professional consultation, technical support and special solutions
b. Providing timely feedback on complaints
c. Providing perfect after sales service and warranty


Q:Why choose us?
a. 22 years' practical experiences in R&D and manufacturing Compressed air treatment;
b. Founder of Compressed Air Nation Standard GB/T30475.1-2013 and GB/T30475.2-2013;
c. ISO 9001:2015, CE and product follow ISO8573-1;
d. With Germany Imported high efficiency filtration Test Instrument;
e.All goods had been 100% test before dispatched.


Frequently Asked Questions:

Q1. What kind of your company is it?
We're the manufacturer integrated with R&D, production and sales.

Q2. How about your technical conditions and production capability?
Complete process documents and equipment, mass production.

Q3. What is the delivery time?
Delivery time depends on the order quantity, normally is 3-5 working days after 30% payment.

Q4. Do you have a warranty?
Yes, for filter, it is 1 year normally.

Q5. Can you supply customized product?
Yes, we have a professional technical team to provide you with the best solution and complete production processes and control to provide you with satisfied product.





Hongrijia Depurate Facility Science & Technology Co.,Ltd



Hongrijia Purification Equipment Technology Co., Ltd. was founded in 1998 and is located in Shenzhen, Guangdong Province. Own brand YUKA and has branches in Huizhou, Tianjin and New Delhi, India, with a total production area of 20,000 square meters.



As a well-known manufacturer of compressed air drying, filtering and separation equipment in China, YUKA is focusing on R&D, production and sales of high-quality compressed air treatment and purification equipment, breaking the situation that China's compressed air filtration and separation technology is occupied by foreign markets. Provide high-quality products and services for industries that need compressed air as a source of power.


Our product types include compressed air refrigeration air dryer (dew point: 2~10), adsorption air dryer (dew point: -20~ -70), high-efficiency compressed air filter, cyclone gas-water separator, oil and gas separator , compressor air filter, oil filter, alternative filter element, floating ball automatic drain and accessories.


The star products are HLX series drying and filtering in one refrigeration dryer, GHF series 30bar high efficiency compressed air filter, G-BHL series 60bar Stainless Steel compressed air filter, HF series and YD series compressed air filters, etc. . The products have obtained a number of national invention patents, utility model patents and appearance design patents. Widely used in military, medical, semiconductor, optoelectronics, nuclear power plants, aerospace, food, beverages, spray coating, laser cutting, chemicals, metallurgy, transportation, electronics, machinery manufacturing, glass, cement, automation, medical treatment, semiconductors, nuclear power plants and aviation And other fields.


YUKA always adheres to quality as the core, and continues to provide customers with high-quality pre-sales, sales and after-sales services, and provides clean, dry, high-quality compressed air for industrial applications, reduces Energy consumption, saves production costs, and improves product qualification rate.
